Additional Boat Details
Interior layout
The hull and deck are made out of a wooden bars and with outer layers of Resinsaturated fiberglass (GRP), combination of chopped strand mat, bi-directional knit
fabric and balsa core hand laminated under controlled temperatures with
Isophthalic polyester resin.
▫ The hull and deck exterior have got mirror glaze gel-coat finish.
▫ The outer layer of hull is stiffened with GRP molded frames filled with polyurethane
and bonded to hull bottom
▫ Boat deck with plywood to support deck fittings and Molded with GRP.
▫ All materials used in the construction are approved marine quality.
▫ Standard hull color is white
Galley
Electronic Equipment
Electrical System
Other Equipment

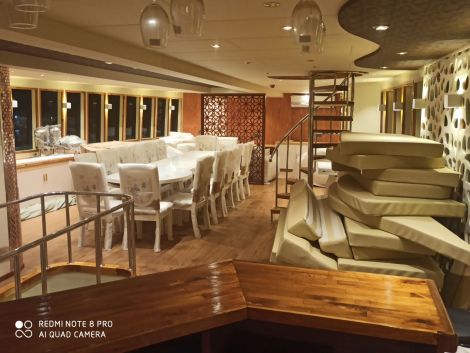

Temperature controlled FRP main cabin covered by tempered marine glass with
luxury seats for 88 passengers.
▫ One separate VIP luxury lounge cabin with leather rounded sofa seat for 18
persons with LCD screen, Separate kitchen galley with fridge and oven, kitchen
cabinet with sink.
▫ One crew room with 10 bunk beds and one toilet with shower.
▫ One toilet with sink on the back side of the main deck.
▫ Air condition system in every room and main cabins, (10 x 9,000 BTU, 1 x 12,000
BTU and 2 x 18,000 BTU).
▫ Marine Generators 2 nos x 30 KW with 1 AC Switchboard panel on the dash
board.
▫ Electrical Windlass, 6 tons weight bearing with 80kg SS Anchor and 100Mtr
Galvanized Chain.
▫ Standard Navigation Equipment (GPS and VHF Radio)
▫ Non-skid flooring
▫ Navigation lights
▫ Remote controlled search light
▫ Compass
▫ Bollards x 4 nos
▫ Windscreen 1 nos
▫ Shore Power socket
Remarks
Length Overall : 30.48 mtr
▫ Length Waterline : 26.50 mtr
▫ Beam : 25.60 mtr
▫ Hull Depth : 4.00 mtr
▫ Draft : 2.50 mtr
▫ Displacement : Approximately 85 tons
▫ Hull and deck materials : Wood and GRP
▫ Fuel capacity : 2 x 3,000 Litter Fiberglass fuel tank
▫ Water capacity : 7 x 200 Liter Fiberglass water tank
▫ Standard Engines : Yanmar 1 x 405 HP inboard diesel
▫ Drive : Direct Shaft
▫ Max speed : 12 knots
▫ Passengers capacity : 30 passengers (8 Guest Room + Captain Room
+ 1 Guide Room + 1 Crew Room)
